Highlight
60.96m Steel Bailey Bridge
,Extra Wide Steel Bailey Bridge
,Heavy Load Steel Bailey Bridge
-
SpanUpto 61m
-
Width3.15m,3.6m,4.2m,7.35m,10.5m
-
Waterpipe Size300mm~500mm
-
MaterialS460J0,S355JR,S355J0,Gr65,Gr50
-
LoadHA ,HB,HA+20HB，AASHTO HL-93,HS35-44
-
LaneSingle Lane 3.15m~4.2m，Double Lane 7.35m, Three Lane 10.5m
-
Surface FinishPained Or Galvanized
-
Place of OriginChina
-
Brand NameTongkai
-
CertificationISO,EN1090,SGS ,CIDB
-
Model NumberTK200
-
Document
-
Minimum Order Quantity1 set
-
Price1500USD ~2000USD/ton
-
Packaging DetailsNude and Steel case
-
Delivery Time15~45days
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability3000/month

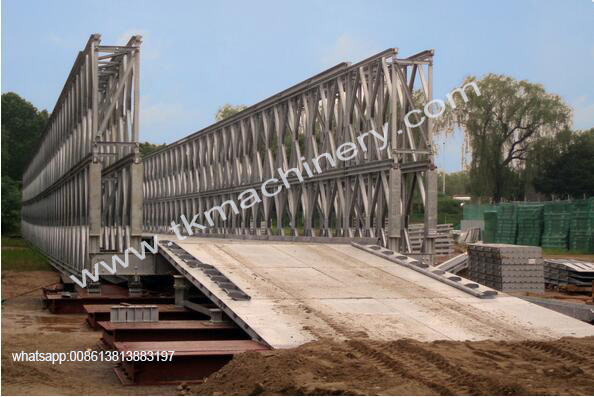

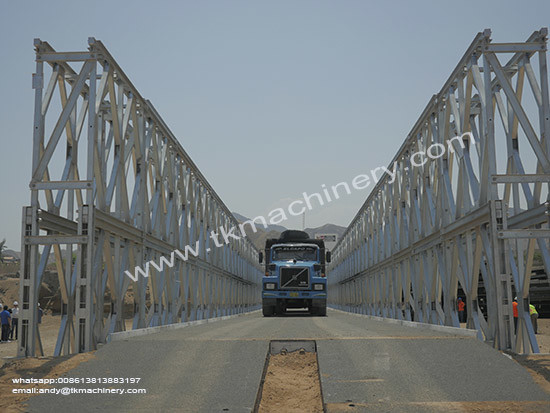

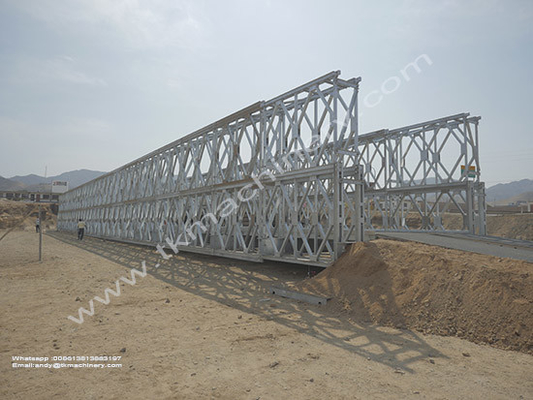

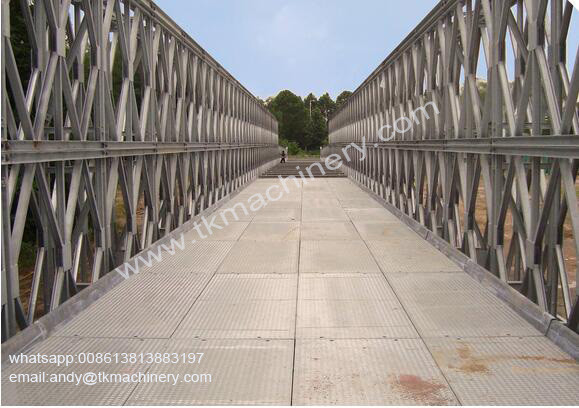

Steel Bailey Bridge Extra Wide Heavy Load 60.96m DDR Long Span
PRODUCT DESCRIPTION
APPLICATION
- Permanent or semi-permanent bridging
- Long span bridging
- Rural infrastructure project
- Urban traffic project
- Humanitarian aid and disaster relief operation
- Pedestrian bridging
- Services pipelines
- Construction site access
- Replacement of damaged bridge
- Emergency response stock
Features
- Modular
- Rapid-build
- Can be assembled using light plant
- Can be crane built or cantilever launched
- Relocatable
- Transport in standard containers
- Long span capability
- Single and multi-span solutions available
- Robust
- High fatigue capability
- Heavy axle / Wheel load capacity
- Long life with minimal maintenance
- Optional ramps, footwalks, piers, parapets and barriers
- Various deck options available
Technical Specification
| Span |
27m upto 61m |
| Road Width |
single lane 3.15m/4.2m ; double lane 7.35m |
| Footway Width | 1m,1.2m,1.5m |
| Material Grade | S460J0,S355JR,GR65,GR50 |
| Load Capacity | HL-93,HS25-44, HA ,HA+20HB |
| Surface Finish | Painted or Galvanized |
| Joint System | Pin and Bolt System |
| Erection Method |
Crane lifting , Cantilever Launching Method |
