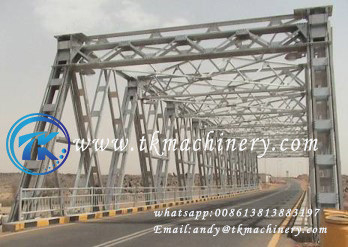

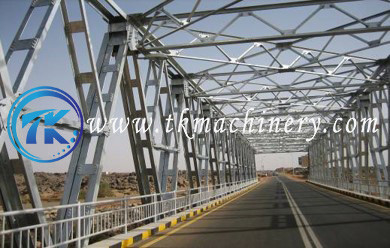

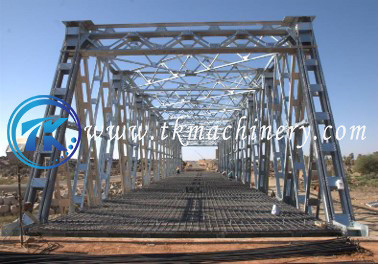

Steel Truss Bridge Steel bridge Large span Heavy Load For Construction Site Access And Replacement In High Demand

Typical Spans:

● From 30 meters to 110 meters

Typical Characteristics:

● Warren through truss

● 5-meters bays ensure modularity between spans

● Class A width: 1m sidewalk + 7m roadway + 1m sidewalk

● Class B width: 0.5m sidewalk + 6m roadway + 0.5m sidewalk

● Utilizes steel deck as permanent formwork

● Double pipe handrails

● Elastomeric bearings with steel plate reinforcement

● Deck protection angle

● High tension Bolts

● Full hot dip galvanizing to all elements

Standard Supplied Erection Aids:

● Bolts spares

● Drift pins for precise bolt hole alignment

● Temporary Deck Bracing Angles

Typical Supply Time:

● 3 months

Application:

● Long -Span

● Permanent or semi-permanent bridging

● Heavy Load

● Highway bridge

● Rural infrastructure project

● Construction,forestry,oil and mining activities

● Construction site access

● Replacement of damaged bridge
