Permanent Modular Steel Bridge Delta Bridge Long Span Heavy Load BS5400 HA+20HB Extra Wide

PRODUCT DESCRIPTION

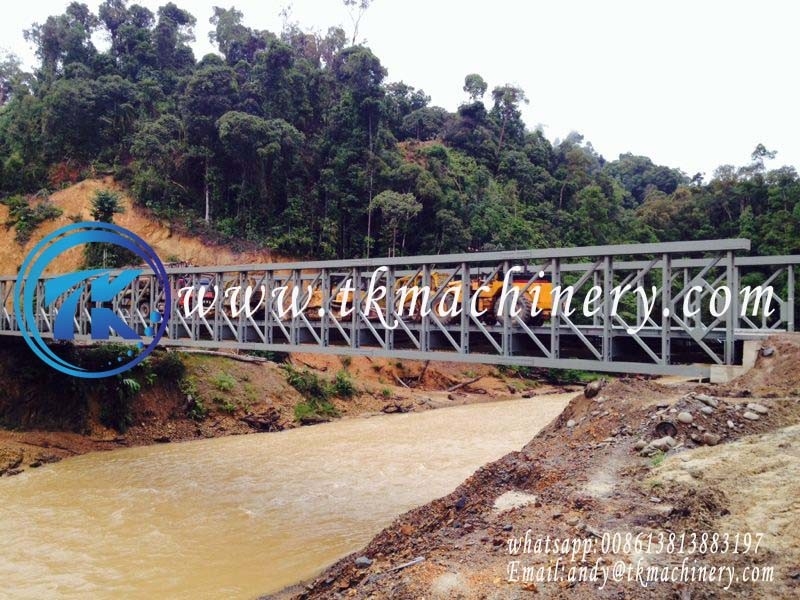

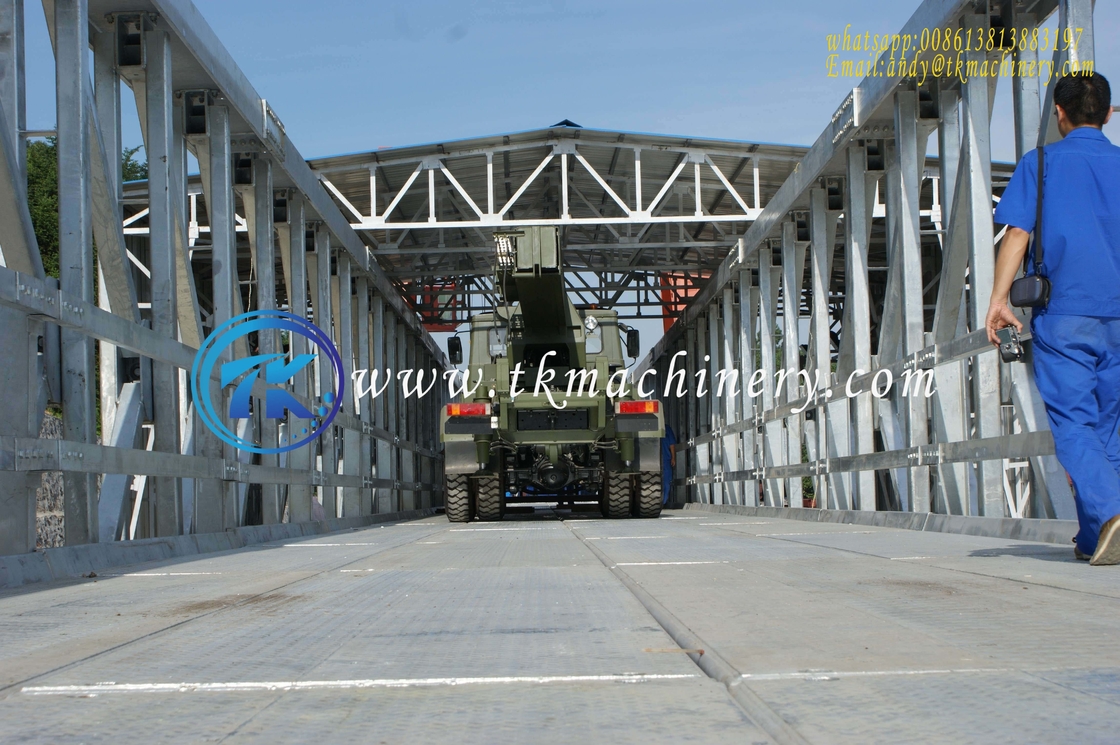

TKD450 Bridge, also know as Delta Steel Bridge, is a kind of half-through permanent compact panel bridge, with the single span length from 35m to 81m; the carriage way width is 4.2m for single lane and 7.35m for double lane; the bridge deck can adopts concrete and steel deck.

The bridge uses standardized, interchangeable steel components with full highway loading capability to provide a permanent, steel bridging solution which can be configured for clear spans of up to 81 meters. It can also be supplied in multiple spans, supported on intermediate piers, meaning that there is no limitation to the length it can bridge.

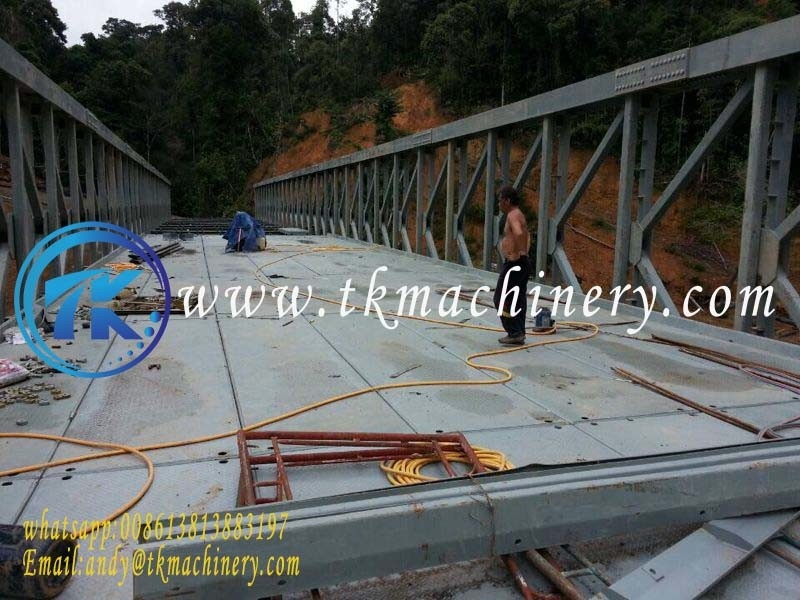

It is precision-engineered and therefore quickly and easily installed, with minimal construction equipment. This offers significant advantages over more traditional solutions, such as concrete bridges, which require skilled labour and heavy-duty equipment, and necessitate long lead-times together with major on-site construction work

The benefits offered by the Delta" therefore ensure quick. safe and efficient project delivery, reduce project risk, and deliver substantial savings, making it the preferred long-span solution of choice for customers all over the world

The top chord and the bottom chord of the main girder are modularized unit with H-shape section; The web member system is also modularized unit with K-shape.

All components of the bridge shall be of brand new manufacture by a fabricator accredited with ISO 9001 and EN 729, or equivalent international quality guarantee qualifications.

APPLICATION

• Permanent or semi-permanent bridging
• Long span bridging
• Rural infrastructure project
• Urban traffic project
• Humanitarian aid and disaster relief operation
• Construction site access
• Replacement of damaged bridge

 Technical Specification

Key features of the system include

• Clear spans up to 81m
• 4.5m module length
• 4.2m (extra wide), 7.35m (2 lane) or 10.5m (3 lane) carriageways
• Optional 1m or 1.5m pedestrian walkways
• Vehicle parapets as standard
• Full highway load-carrying capability
• Full-scale tested
• Pre-cambered to remove dead load deflection
• Proprietary steel decking system featuring pre-loaded/
• slip resistant bolts
• Factory-applied anti-skid or site-applied asphalt-surfacing
• Steel sub-grades suitable for cold climate applications
• (AASHTO Zone 3)
• Seismically robus
