Emergency Bridge ZB200 Compact 200 S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge
Our Product Introduction
for more products please visit us on tkbridges.com
Basic Information
Place of Origin:
China
Brand Name:
Tongkai
Certification:
ISO,EN1090,SGS ,CIDB
Model Number:
ZB200/TK200/Compact 200
Minimum Order Quantity:
1 set
Price:
1000USD ~1800USD/ton
Packaging Details:
Nude and Steel case
Delivery Time:
15~45days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
3000/month
Emergency Bridge ZB200 Compact 200 S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge
Product Specification
Material:
S460J0,S355JR,S355J0,Gr65,Gr50
Load:
HA ,HB,HA+20HB，AASHTO HL-93,HS35-44
Lane:
Single Lane 3.15m~4.2m，Double Lane 7.35m
Surface Finish:
Pained Or Galvanized
Ramp:
6m,9m,12m
Highlight:

S460J0 Emergency Bridge

,

ZB200 Emergency Bridge

,

BS5400 Bailey Bridge

Emergency Bridge ZB200 Compact 200 S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge
More Images
Emergency Bridge ZB200 Compact 200 S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge
Emergency Bridge ZB200 Compact 200 S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge
Our Product Introduction
for more products please visit us on tkbridges.com
Product Description

PRODUCT DESCRIPTION

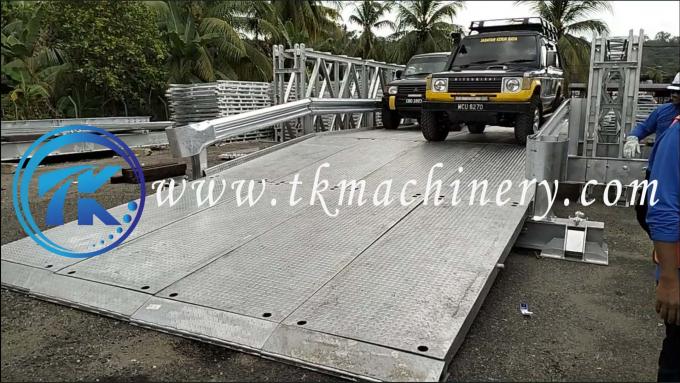

The emergency steel bridge is based on the ZB200 bridge with ramps at both ends for easy access, so that vehicles and pedestrians can directly drive on the steel bridge. Depending on the field situation, the ramp can be one, two, three or four bays.



APPLICATION

  • Rescue and Disaster
  • Rural infrastructure project
  • Urban traffic project
  • Humanitarian aid and disaster relief operation
  • Pedestrian bridging
  • Services pipelines
  • Construction site access
  • Replacement of damaged bridge
  • Emergency response stock

 Technical Specification



Span

 9.144m(30ft ) upto 60.96m(200ft)
Road Width

single lane 3.15m/4.2m ;  double lane 7.35m
Material Grade S460J0,S355JR,GR65,GR50
Load Capacity HL-93,HS25-44, HA ,HA+20HB
Surface Finish Painted or Galvanized
Joint System Pin and Bolt System
Erection Method

Crane lifting , Cantilever Launching Method
